CATIA V5 < > SIEMENS NX CAM

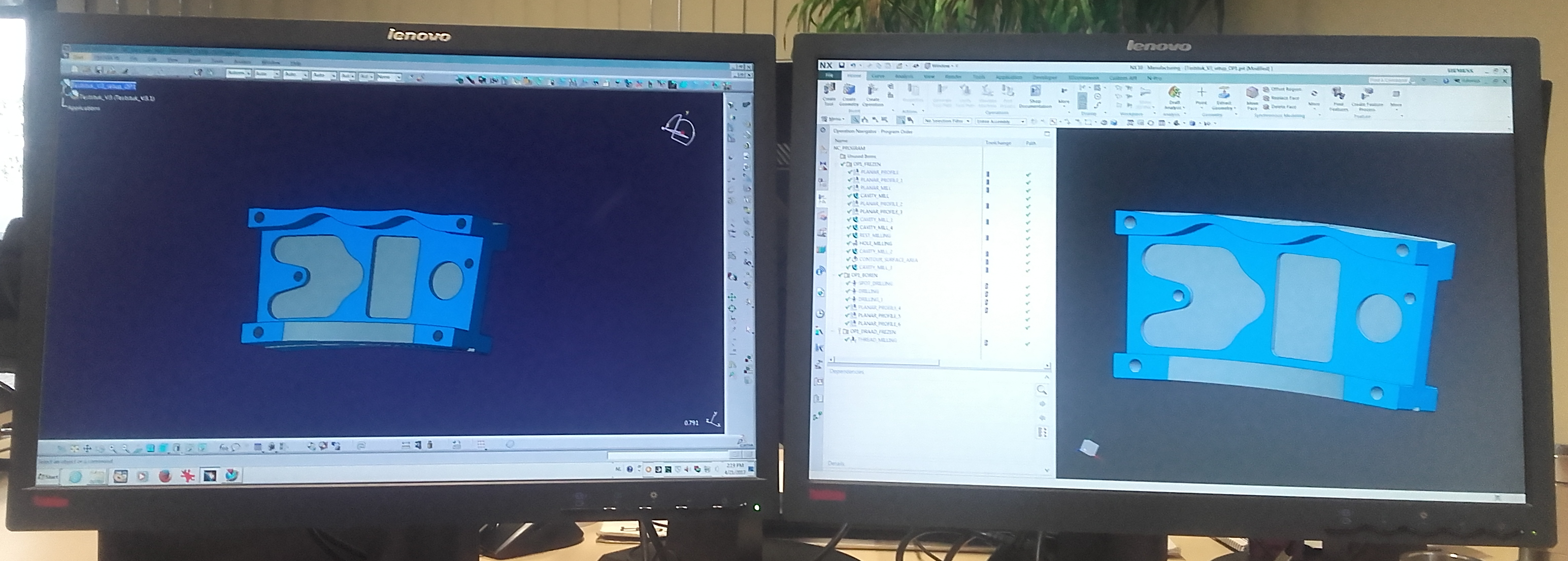

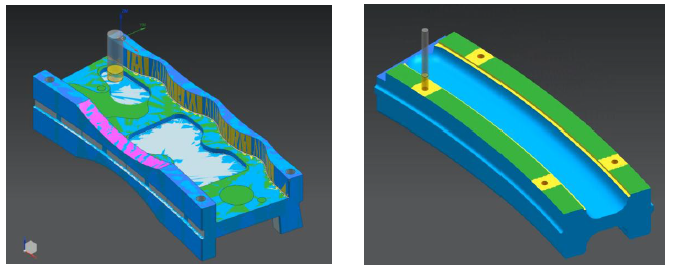

AEROMO 5-axis titanium part developed to practice hard material machining strategies. Programmed in CATIA V5 aswell in Siemens NX in order to compare both software in CNC milling functionalities.





  • * Machining of Hard material strategy (titanium)
  • * Arc-in
  • * Trochoidal

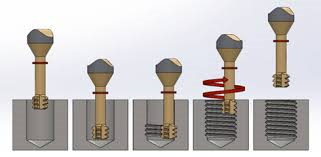

  • * Thread Milling

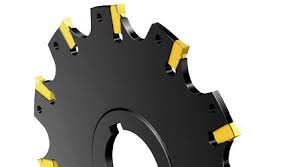

  • * T-Slotter with diff. length comp.
  • * Porcupine cutters





  • * Feed Mills

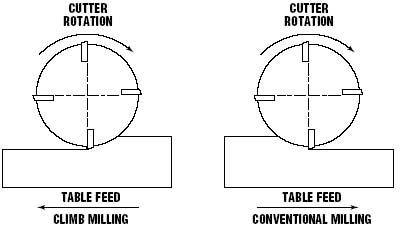

  • * Climb – Conventional milling
  • * Re-Design
  • * Machine transfers
